Professional Audio:
Experience Sonic Perfection in Every Performance
Welcome to the Pro Audio Solutions page at ISP Technologies, where we specialize in premium audio equipment tailored for professional installations in concert halls, mega churches, and other large-scale venues. Our comprehensive range of expertly engineered speakers, amplifiers, and effect processors is designed to meet the rigorous demands of these settings, ensuring exceptional sound quality and coverage for every listener. Trust in ISP Technologies to elevate your live audio experience and create a truly immersive atmosphere for your audience.
Line Array Systems
HDL 4212™ HIGH DEFINITION LINE™
The ISP Technologies HDL 4212™ speakers are a 4-way line array box of the highest performance and fidelity. The HDL 4212 is a 5-degree vertical box.
ISP Technologies is the only manufacturer to offer the True 4-Way Line Array Technology design (the Clair I-4 is a proprietary 4-way box, but the 4th ‘way‘ is a built-in subwoofer). All other line array boxes are 2 or 3-way (the Meyer Milo is three 1/2-way, in that both 12-inch woofers operate below a certain frequency).
HDL 4212™ HIGH DEFINITION LINE™

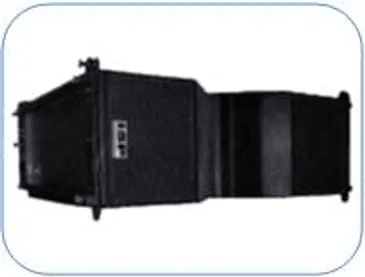

HDL 4210™ HIGH DEFINITION LINE™
Four-way line array element of the highest performance and fidelity. Two 10 inch woofers, two 6.5 inch horn loaded lower MF, two 2 inch horn loaded HMF compression drivers with phenolic diaphragms, two 1.75 inch horn loaded HF compression drivers with mylar diaphragms. Precision lenses for seamless HF coverage with “air.” Elements available with vertical coverage of 12 and 6 degrees. 4 channels DAA amplification (1150 watts RMS total power) per box.
HDL 4210™ HIGH DEFINITION LINE™

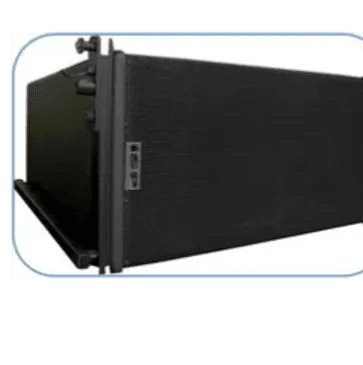

HDL 3112™ HIGH DEFINITION LINE™
Hi-Fi meets small format line array for high definition audio. True 3-way small format line array box, 4-way system with subs. Three HF drivers with neo magnets and 1.75 inch non-metallic diaphragms, to deliver a high-fidelity sound which is more pleasant than typical larger titanium diaphragms. Large format 3 inch mid-range compression driver covers upper mid-range frequency band. This driver does not suffer from the cone breakup of typical cone speakers used in this frequency band by our competitors, for stunning midrange clarity and dynamics. LF drivers are 12 inch drivers with neodymium magnets. These are optimized for the frequency range covered by this driver. Supplied with 3 channels of high current DAA™ amplification (1150 Watts RMS total power) per cabinet. LineCalc 112 Excel Spreadsheet Software for aiming and prediction.
HDL 3112™ HIGH DEFINITION LINE™

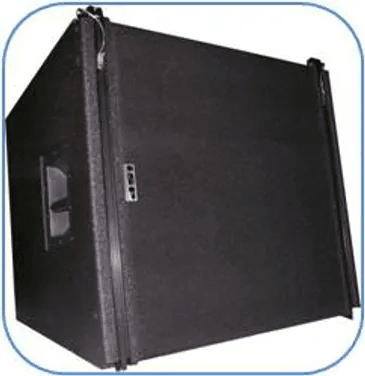

HDL 118™ HIGH DEFINITION LINE™
The HDL 118 is a flyable subwoofer that can be pinned to the HDL 3112.
ISP Technologies 18″ Selenium Woofer, Ground Stacked or Flown with the HDL 3112 Line Array System
The HDL 118 is equipped with two steel bar handles and is designed to be either ground stacked or flown with the HDL 3112 Line Array System. The HDL 118 was designed with a 1000-watt 18-inch woofer. The HDL 118 incorporates a High Current DAA power amplifier system capable of producing upwards of 1000 watts RMS as a stand-alone system.
HDL 118™ HIGH DEFINITION LINE™

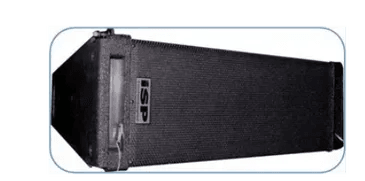

HDL 2208™ HIGH DEFINITION LINE™
ISP Technologies HDL2208 is a high performance, powered, small-format line array cabinet providing high fidelity performance and smooth, accurate response.
The HDL2208 provides a 2-way line array design with little compromise in terms of its mid-range performance. This is in part due to a new high performance non-metallic compression driver on a multiple-aperture waveguide and dual 8-inch neo woofers. The result is a new level of performance in a small-format line array system.
HDL 2208™ HIGH DEFINITION LINE™
GLA™2806
The ISP Technologies GLA™2806 Line Array Speaker is a new extremely high performance small format 2-way “true” line array cabinet with “gapless” summation of the line array elements. The new GLA2806 provides line array performance at an unheard of price point. Now venues looking for a small format line array can have a true high fidelity, high performance line array system without the associated high price. All multi-box line array systems suffers from a gap between the individual elements of the line array which can cause response errors due to the spacing between the drivers. In many designs this will cause both frequency and phase errors in the response which means the sound will change based on the seating position in the room. The GLA2806 system delivers all the advantages of a true line array system but with a new level of precision summation between the internal components and with the same mid-range clarity and definition that ISP has become known for. The GLA2806 provides a 48-degree vertical by 110-degrees horizontal pattern with extremely smooth summation between the internal elements. The GLA2806 is a powered bi-amplified design featuring ISP Technologies patented DAA Dynamic Adaptive Amplifier technology. The new DAA power amplifier delivers efficiency close to that of Class D but with class A/B sonic performance for both the best and warmest sound possible.
GLA™2806
GLA™2606
The ISP Technologies GLA™2606 Line Array Speaker is a new extremely high performance small format 2-way “true” line array cabinet with “gapless” summation of the line array elements. The new GLA2606 provides line array performance at an unheard of price point. Now venues looking for a small format line array can have a true high fidelity, high performance line array system without the associated high price. All multi-box line array systems suffers from a gap between the individual elements of the line array which can cause response errors due to the spacing between the drivers. In many designs this will cause both frequency and phase errors in the response which means the sound will change based on the seating position in the room. The GLA2606 system delivers all the advantages of a true line array system but with a new level of precision summation between the internal components and with the same mid- range clarity and definition that ISP has become known for. The GLA2606 provides a 32-degree vertical by 110-degrees horizontal pattern with extremely smooth summation between the internal elements. The GLA2606 is a powered bi-amplified design featuring ISP Technologies patented DAA Dynamic Adaptive Amplifier technology. The new DAA power amplifier delivers efficiency close to that of Class D but with class A/B sonic performance for both the best and warmest sound possible. The GLA2606 has flypoints on top for flying and also includes a bottom cup for stand mounting making this an excellent system for corporate or other portable events.
GLA™2606

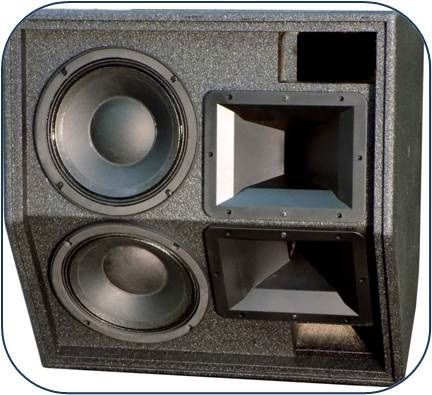

VT2210™
The VT2210 was developed in collaboration with SoundCom System for outdoor football stadium applications. The dual element line array design allows a single speaker to provide a down firing element to cover near-field bleachers and an upper element to cover across the field bleachers. By incorporating both the near-field and long throw across the field element into one cabinet we eliminate the interaction and phase problems associate with separate cabinet. This greatly improves fidelity, clarity and definition of the sound system.
VT2210™
Speakers
CX 110i™
The ISP Technologies’ powered CX series coaxial speakers are high performance coaxial speakers offering a new level of performance not typical with a coax design.
Based on a new generation of high performance coax drivers, the CX Series cabinets are available in both fully weatherized cabinets with external rack mount amplifiers, for outdoor applications as well indoor use. The cabinets incorporate precision matched active crossovers and equalization thus delivering high SPL with amazing fidelity and superb midrange performance. Both the CX114i and CX110i provide the advantages of coaxial speakers which provide more precise off axis response in all directions due to accurate spectral response arrival time. The CX series deliver the same fidelity and clarity that ISP has become well known for and are a great choice where outdoor high performance sound is required. The CX114i-W and CX110i-W are full weatherized versions built with exterior grade 18mm Baltic birch plywood, fully sealed with a polyurea spray on finish with UV protection, hot zinc dipped and powered coated grills with stainless steel screws and hardware, weatherproof speakon connectors and stainless steel mounting bracket.
CX 110i™

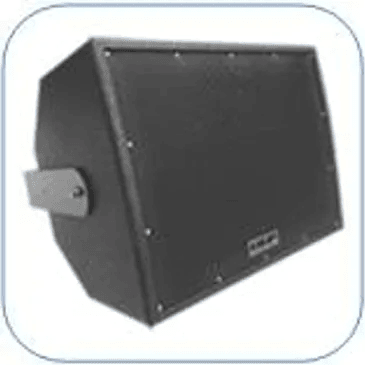

CX 114i™
The ISP Technologies’ powered CX series coaxial speakers are high performance coaxial speakers offering a new level of performance not typical with a coax design.
Based on a new generation of high performance coax drivers, the CX Series cabinets are available in both fully weatherized cabinets with external rack mount amplifiers, for outdoor applications as well indoor use. The cabinets incorporate precision matched active crossovers and equalization thus delivering high SPL with amazing fidelity and superb midrange performance. Both the CX114i and CX110i provide the advantages of coaxial speakers which provide more precise off axis response in all directions due to accurate spectral response arrival time. The CX™ series deliver the same fidelity and clarity that ISP has become well known for and are a great choice where outdoor high performance sound is required. The CX114i-W and CX110i-W are full weatherized versions built with exterior grade 18mm Baltic birch plywood, fully sealed with a polyurea spray on finish with UV protection, hot zinc dipped and powered coated grills with stainless steel screws and hardware, weatherproof speakon connectors and stainless steel mounting bracket.
CX 114i™
CXL3134™
The CXL3134 is a 3-way box using the latest state of the art drivers capable of delivering high fidelity sound at extreme SPL’s with high intelligibility over a wide coverage pattern due to the symmetric, coaxial horn loaded midrange and high frequency system.
It is capable of impressive low frequency response to below 50 Hz without use of a subwoofer. Designed to provide excellent clarity and fidelity over long distance high SPL.
CXL3134™
LT1 / LT1XF™
1150 watts RMS 3-way cabinet. 12 inch woofer, 8 inch midrange, 2 inch voice coil titanium HF driver.
Flyware.
External amplifiers available.
XF – Upgraded 1.75 inch polyester diaphragm, neo magnet HF driver response 50 Hz to 18 KHz.
400+400+250 W rms 3-channel amplifier with electronic crossover included. No digital processor needed.
Three-way full range active system, 12’’ woofer, 8’’ midrange, 2 inch voice coil titanium HF driver.
90 H x 70 V dispersion covers from the first row to the last.
Designed for flying with small vertical dimension and slanted top to maximize sight lines.
Made with Baltic Birch
LT1 / LT1XF™
LT2 / LT2XF™
1150 watts RMS 3-way cabinet.
15 inch woofer, 8 inch midrange, 2 inch titanium diaphragm HF driver.
Flyware.
External amplifiers.
Description
700+350+100 W rms 3-channel amplifier with electronic crossover included. No digital processor needed.
– Three-way full range active system, 15’’ woofer, 8’’ midrange, 2 inch titanium diaphragm high frequency compression driver.
– 90 H x 70 V dispersion covers from the first row to the last.
– Designed for flying with small vertical dimension and slanted top to maximize sight lines.
Made with Baltic Birch
LT2 / LT2XF™
TRIPOWER REFERENCE™
ISP Technologies introduces the ultimate in high performance, High-SPL and High Fidelity mobile sound-reinforcement systems: the “Concert Series”. You know the excitement of a live concert; the sound is high impact with huge amounts of power and extremely high SPL! Now you can have that same level of performance with high power, high SPL and amazing fidelity for any performance.
ISP Technologies new Concert Series includes the novel, high performance Tripower Reference top box, a high output dual 15 low mid trap cabinet, and the XMAX subwoofers configured to be used as both 4-way and 5-way full Active Systems. The new high performance Concert Series systems offer sound reinforcement specifically designed to provide concert level SPL and high impact performance for venues with 500 to 2000 seats. Most systems designed for this level of performance, when driven even close to their limits, simply fall apart in the midrange portion of the spectrum. Virtually all of the systems designed for this size venue lack the deep powerful high impact bass required to reproduce a live kick drum and bass guitar and simply don’t deliver in the critical midrange frequency response from 400Hz up to 1.5KHz. The typical system uses a large format compression driver designed to cover frequencies from about 1KHz to 20KHz.
The common problem is while the large format compression driver can deliver extreme SPL up to about 8KHz it seriously drops off in level above this frequency. These systems will typically apply high frequency equalization to boost the output level above 8KHz. The result is the compression driver starts ringing which generates audible intermodulation distortion. The sonic result is a gross degradation in fidelity, definition, and a general sound that’s typically shrill and not very distinct. The new Concert Series sound reinforcement systems from ISP Technologies offer a number of options for different venue sizes and SPL with the highest level of fidelity available and devoid of the above described problems.
The new ISP Concert Series systems will outperform systems costing more than three or four times the cost and provide a fidelity, definition, and transient response previously unavailable at this price. The Tripower Reference offers outstanding high fidelity, high resolution, and high output sound. With 134dB peak SPL at 1 meter and a balanced spectral output, the Tripower Reference will become the new standard of speaker to which others aspire. The high-current 1150-watt RMS tri-amplifier uses the patent pending DAA™ power amplifier technology, and has 4th order electronic crossovers built-in, plus time alignment and phase correction.
The high fidelity and high resolution of the Reference is achieved by a unique design whereby all drivers operate in their range of pistonic motion free from cone and diaphragm breakup, which plagues virtually all other designs. Designed for use with the XMAX subs,the upper bass and lower mids are handled by two 12-inch cast basket drivers with 4-inch edgewound voice coils and Kevlar impregnated cones, giving 1150 watts of continuous power capacity. A massive 4-inch, ferrofluid cooled voice coil compression driver with embossed titanium diaphragm takes care of the mids and is crossed over before breakup occurs. By using a high SPL, high performance 4-inch compression driver crossed over specifically within the frequency band where its output is ruler flat means the Reference maintains critical spectral balance providing Hi-Fidelity performance even at maximum SPL output. The highs are handled by a 1-inch throat, 1.75-inch voice coil compression driver with a non-resonant polyester diaphragm and a high energy neodymium magnet, offering a sweet, extended high end with extreme performance. Custom mid-frequency and high-frequency horns with 90 degrees horizontal coverage and an asymmetrical vertical pattern of 10 degrees up and 30 degrees down, give the Tripower Reference optimum far throw and near field coverage.
The Reference is available in a single box system, with flyware and for mobile applications is also available as a 2-box system with a 2×12 trapezoid cabinet and a separate MID-HI pack. The Tripower Reference 2-box system has the power amplifier built in the 2×12 cabinet and power is fed to the MID-HI pack with a 4-conductor speakon cable. The MID-HI pack is less than 50 pounds making set-up and stacking easy. For the ultimate performance, add the Reference 215 cabinets and you have the stunning performance of a 5-Way full Active system. This system packs the punch that will astound your audience with both power and fidelity. The Reference 215 is a 1000 watt, active, low-mid trapezoid cabinet designed with a built in band-pass crossover network operating between 100Hz and 260Hz with 24db/octave slopes which provides that extra headroom and punch in the low mids. Not only do you have a 5-way system but you have now added an extra 2000 watts of power in the audio spec
TRIPOWER REFERENCE™
TRIPOWER 900/15™
Tripower 900 – 1150 watts RMS, 15 inch woofer, 10 inch midrange, 1.75 inch Beyma HF driver. Flyware.
Tripower 15 – 700 watts RMS. 15 inch woofer, 10 inch midrange, 2 inch titanium driver.
Flyware available.
Rid yourself of the distorted, unintelligible vocal and instrumental sounds of compromising 2-way cabinets. The new ISP TRIPOWER cabinets provide high-output, high fidelity definition throughout the entire spectrum, including that very important, often overlooked critical midrange. You see, standard 15” or 12” 2-way cabinets fatally compromise the sound by requiring a large woofer to provide powerful bass, yet also reproduce the critical midrange.
It simply can’t do both with accuracy, especially at high volumes. So when it’s getting blasted with bass, the midrange literally turns to mush. What’s more, the dispersion of a large woofer in the midrange is limited to that of a flashlight: move off to the side and the mids are gone! To try and compensate, the high-frequency horn is usually required to go lower in frequency, resulting in more distortion in the highs and that all too common “screechy horn sound”.
Try playing a well-recorded CD through another PA cabinet; less than exciting right? Try playing it through an ISP TRIPOWER cabinet and it sounds like a high-fidelity speaker, one that is actually a sonic pleasure to listen to.
Here’s why the Tripower three way cabinets offer the best sonic fidelity you’ve ever heard. Examine a two-way speaker system where the woofer has to reproduce both the low bass and midrange detail of the input signal. The result is serious intermodulation distortion when the woofer is driven even at moderate levels since the cone of the speaker is required to simultaneously reproduce the large excursion bass and the mid range frequencies. The midrange turns into a very unintelligible sonic blur that creates a giant hole in the middle of the frequency response. We’ve all heard this typical response where the horn becomes shrill and piercing with a hole in the mids right where you need clarity and low distortion for intelligibility of vocals and instruments.
The ISP TRIPOWER 3-way speakers were designed by an audiophile to give the balanced detailed sound of hi-fi speakers at concert levels (128 db peak at 1 meter for the 15” cabinet). The inclusion of a powerful 10” (or 8”) midrange driver allows the woofer to stay lower and the tweeter to stay higher, resulting in a much more accurate and intelligible sound at higher levels (some other 3-way cabinets use a smaller 6” midrange, which still requires the 15” woofer to go too high up). We use woofers optimized for deep, powerful bass with large excursion capabilities, twice that of other inferior cabinets. We also incorporate high-frequency horns with smooth, extended response. Also incorporated into the ISP TRIPOWER cabinets are 3 channels of our patent pending DAA™ Dynamic Adaptive Amplifier Technology. The DAA amplifier technology is an extremely high current power amplifier design that can actually drive load impedances of less than 1 ohm.
This translates into incredible impact for transients providing the Tripower speakers with better transient response than you’ve ever heard. This also avoids the typical loss associated with passive crossovers where a portion of the power amplifiers output is dissipated in the crossover network. In the Tripower cabinets each individual speaker is fed with its own optimized power amplifier with thermal and overload protection for reliable, pure, high-output sound. We’ve matched each individual speaker with a power amplifier optimized for each specific driver. Feeding the amplifiers is a sophisticated, exhaustively tweaked 3-way, 4th-order, 24db per octave electronic crossover that provides ruler flat frequency response. The result is, a more accurate crossover design with phase alignment, damping factor optimization and time alignment that could never be realized with external crossovers and amplifiers. PROTECTION, PROTECTION, AND MORE PROTECTION!
The Tripower 12 also includes full thermal protection with 3 thermal monitoring points built in the system. First we include thermal management in each individual DAA circuit. Then we incorporate a global heatsink thermal temperature monitor point that will provide a short term thermal shut down if required to maintain a safe thermal condition for the entire power amplifier module. Then we also include a master thermal breaker in the power transformer to ensure long-term reliability. Also included in all of the ISP Active speakers is a sophisticated turn on and turn off transient suppression and AC line filter suppression circuitry. Now let’s talk about the DAA protection, each channel of DAA power amplification includes full short circuit and over current protection increasing the reliability of each power amplifier section. All you need to provide are the AC power and a high-quality line-level input signal.
Made with Baltic Birch
TRIPOWER 900/15™
TRIWEDGE™
1000 watts RMS active 3-way floor monitor. 12 inch woofer, 10 inch midrange, 2 inch compression driver, internal 4th order crossover network.
ISP Technologies brings you the “No Compromise” high performance, High Fidelity Active 3-Way floor wedge. No longer do you need to compromise the stage monitor mix with the poor performance of a 2-way floor monitor.
The all too common result of a 2-way floor monitor is low fidelity, distorted, unintelligible vocals and instruments. The new ISP Technologies TRIWEDGE provides high-output, high fidelity definition throughout the entire spectrum, including that very important, often overlooked critical midrange.
TRIWEDGE XH- Includes upgraded 1.75 inch compression driver.
You see, standard floor monitors fatally compromise the sound by requiring a large woofer to provide powerful bass, yet also reproduce the critical midrange. It simply can’t do both with accuracy, especially at high volumes. So when it’s getting blasted with bass, the midrange literally turns to mush. To try and compensate, the high-frequency horn is usually required to go lower in frequency, resulting in more distortion in the highs and that all too common “screechy horn sound”. Not even close to high fidelity. The TRIWEDGE 3-Way Floor Monitor system offers an uncompromised approach to a High SPL, High Fidelity stage monitor. With a total output power of over 600 watts RMS the TRIWEDGE is great for any professional stage environment. The TRIWEDGE offers ruler flat response, which help reduce the problem of feedback. This ruler flat response means you can also use the TRIWEDGE at a higher SPL level than other stage monitors. The inclusion of a powerful 10” midrange driver allows the woofer to stay lower and the tweeter to stay higher, resulting in a much more accurate and intelligible sound at higher levels. On a transient basis the 10 inch midrange driver can deliver over 300 watts RMS. We use a 12″ woofers optimized for deep, powerful bass with large excursion capabilities. We also incorporate a high-frequency horn with smooth, extended response. Also incorporated into the ISP Technologies TRIWEDGE are 3 channels of our patent pending DAA™ Dynamic Adaptive Amplifier Technology. The DAA amplifier technology is an extremely high current power amplifier design that can actually drive load impedances of less than 1ohm. This translates into incredible dynamic impact for transients providing the TRIWEDGE monitor system with better transient response than you’ve ever heard.
Made with Baltic Birch
TRIWEDGE™
PROWEDGE 210™
ISP Technologies ProWedge™ 210 is a very high output powered monitor at home on the loudest stages, but providing accurate, detailed reproduction. It uses the latest design in neo drivers for low distortion and high output. It comes within 2dB of peak output of the ProWedge™ 212, while providing a lighter, more compact package. It also provides slightly smoother midrange response at the extremes of its coverage angles when compared to a 2 x 12 wedge. The built-in processing and 3 channel DAA™ amplifier allows for extremely easy use, just provide a line-level signal and power.
A 60 x 60 degree constant directivity horn pattern and use of dual woofers results in controlled dispersion to reduce bleed into adjacent performers spaces, yet reduces the extreme beaming of important high frequency information found on competing wedges. The Sleek, modern design can actually be used in 4 different positions: Normal position with a 40 degree baffle tilt, ‘Longer-throw’ position with a 50 degree baffle tilt, front-fill position with a vertical baffle orientation, or side-fill position standing on end on top of a sub. XLR signal and Powercon™ connectors are recessed on the side, with ‘thru’ outputs for connection to multiple wedges.
The woofer cones are fully waterproofed to survive the elements and abuse. A reinforced, foam-backed, curved grille provides further protection. The Baltic birch plywood box is coated with a tough polyurethane finish for durability.
Very high output stage monitor
2-way powered design
Sleek look with curved steel grille
Dual 10 inch LF drivers with neo magnets and waterproof cones
1.4” throat compression driver covers the upper midrange and high frequency band for stunning clarity and dynamics
Internal three channel DAA™ amplification with built-in electronic crossover
Made with Baltic Birch
PROWEDGE 210™

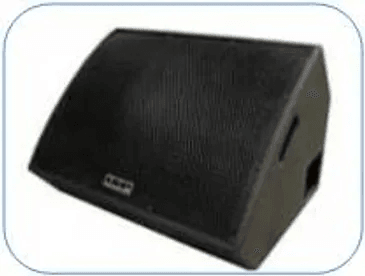

PROWEDGE 212™
ISP Technologies ProWedge™ 212 is a very high output powered monitor at home on the loudest stages, but providing accurate, detailed reproduction. It uses the latest design in neo drivers for low distortion and high output.
The built-in processing and 3 channel DAA™ amplifier allows for extremely easy use, just provide a line-level signal and power. A 60 x 60 degree constant directivity horn pattern and use of dual woofers results in controlled dispersion to reduce bleed into adjacent performers spaces, yet reduces the extreme beaming of important high frequency information found on competing wedges.
The Sleek, modern design can actually be used in 4 different positions: Normal position with a 40 degree baffle tilt, ‘Longer-throw’ position with a 50 degree baffle tilt, front-fill position with a vertical baffle orientation, or side-fill position standing on end on top of a sub. XLR signal and Powercon™ connectors are recessed on the side, with ‘thru’ outputs for connection to multiple wedges. The woofer cones are fully waterproofed to survive the elements and abuse. A reinforced, foam-backed, curved grille provides further protection. The Baltic birch plywood box is coated with a tough polyurethane finish for durability.
Made with Baltic Birch
PROWEDGE 212™

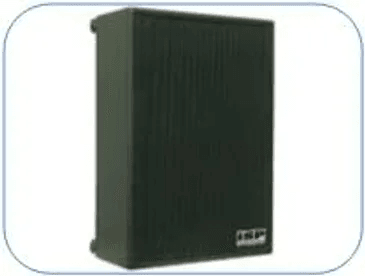

HIGH DEFINITION MONITOR 112™
The highest output you can pole mount!
1150 watts RMS.
Two 10 inch neo woofers, dual compression mids, 1.75 inch neo HF driver.
Floor wedge or pole mount.
Description
– High output, high resolution, compact three-way active system
– Pole mount, floor wedge, or ground stack use
– Lightweight neodymium drivers provide highest output-to-weight ratio
– Dual compression midranges provide higher resolution and output than a cone midrange
– 1 inch throat high frequency compression driver for extended, detailed highs
– 1100 watt RMS 3-channel amplifier with electronic crossover included. No digital processor needed.
Made with Baltic Birch
HIGH DEFINITION MONITOR 112™

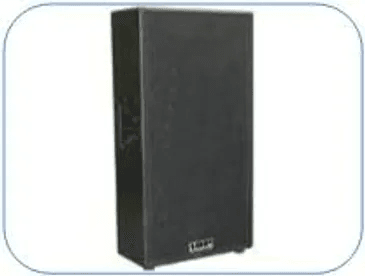

HIGH DEFINITION MONITOR 115™
High Definition with real low end.
1150 watts RMS.
One 15 inch neo woofer, dual compression mids, 1.75 inch neo HF driver.
Floor wedge or pole mount.
Description
– High output, high resolution, compact three-way active system
– Pole mount, floor wedge, or ground stack use
– Lightweight neodymium drivers provide highest output-to-weight ratio
– Dual compression midranges provide higher resolution and output than a cone midrange
– 1 inch throat high frequency compression driver for extended, detailed highs
– 800+200+150 W rms 3-channel amplifier with electronic crossover included. No digital processor needed.
Made with Baltic Birch
HIGH DEFINITION MONITOR 115™
HIGH DEFINITION MONITOR 210™
The highest output you can pole mount!
1150 watts RMS.
Two 10 inch neo woofers, dual compression mids, 1.75 inch neo HF driver.
Floor wedge or pole mount.
– High output, high resolution, compact three-way active system
– Pole mount, floor wedge, or ground stack use
– Lightweight neodymium drivers provide highest output-to-weight ratio
– Dual 10 inch woofers provide higher resolution and output than a single 15
– Dual compression midranges provide higher resolution and output than a cone midrange
– 1 inch throat high frequency compression driver for extended, detailed highs
– 600+200+100 W rms 3-channel amplifier with electronic crossover included. No digital processor needed.
Made with Baltic Birch
HIGH DEFINITION MONITOR 210™

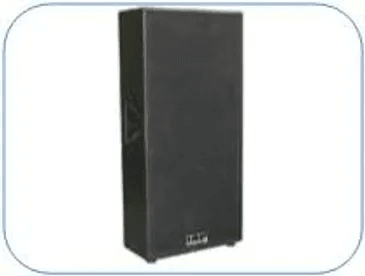

HIGH DEFINITION MONITOR 212™
High definition, high output front of house box!
1150 watts RMS fan cooled 3-way. 2 x 12 neo woofers, dual compression mids, 1.75 inch neo HF driver.
Ground stack or with Flyware.
– High output, high resolution, compact three-way active system
– Pole mount, floor wedge, or ground stack use
– Lightweight neodymium drivers provide highest output-to-weight ratio
– Dual compression midranges provide higher resolution and output than a cone midrange
– 1 inch throat high frequency compression driver for extended, detailed highs
– 600+200+100 W rms 3-channel amplifier with electronic crossover included. No digital processor needed.
Made with Baltic Birch
HIGH DEFINITION MONITOR 212™
VT110/VT 112 SERIES POWERED SPEAKER™
The VT110 is a flyable high output speaker providing high fidelity sound that ISP has become so well known for. The VT110 works excellently for Front of House systems foreground and background music plus music-plus-paging systems. These speakers are ideally suited for a wide variety of applications including church installs, nightclubs, restaurants and any installation requiring a low profile high output cabinet. Many church applications require a low profile cabinet due to low ceiling heights. Choices are limited for a speaker capable of high output high definition with excellent clarity. The VT110 is the perfect answer and ships standard with internal fly-points on top and also includes a lower pull-back rig point. This cabinet can be ordered with either a vertical or horizontal orientation. The VT110 has excellent vocal clarity and dynamic impact. Combined with a subwoofer the VT110 provides a very high performance audio system.
Low Profile high output powered cabinet. 2-way bi-amped internally powered design.
VT110/VT 112 SERIES POWERED SPEAKER™
Subwoofers
XMAX 218™
The ISP Technologies XMAX 218 Subwoofer has been carefully designed to provide a level of performance, both in terms of SPL output and low frequency extension, equal to or better than the best dual 18 cabinets. The 18-inch drivers are the latest state-of-the-art design.
They feature massive finite element Analysis optimized magnet structures, dual spiders, triple cooling systems, 4-inch voice coils, and a 25mm peak excursion.
2000 watts RMS active, dual 18 inch sub woofer. 4 inch voice coil, internal stereo 4th order crossover. Available in touring version with Dolly Board.
The XMAX 218™ result is an outstanding 2000-watts RMS power handling for low power compression and high reliability. The cabinet also features a very large port, much larger than found on many dual 18 cabinets. This provides better linearity for higher output and lower frequencies. Combine all this with a low cabinet tuning, and deep, tight, high output bass is achieved. Standard with the system is a dual channel, 2000-watt RMS (4000-watt peak),High output option 4000 RMS, (8000-watt peak) amplifier that is specifically designed for use with the speaker. This amplifier features ISP’s patent pending DAA high-current amplification technology and is capable of driving the speakers beyond their safe operating limits. Dual cooling fans automatically switch on when needed. The height of 24 inches allows for enhanced truck pack with 94-inch (7’8″) internal truck widths. Optional Dolly Board with 4 castors is also available.
Made with Baltic Birch
XMAX 218™
XMAX 415™
The ISP Technologies XMAX 415™ Subwoofer has been carefully designed to provide a superior level of performance, both in terms of SPL output and low frequency extension. The four 15-inch drivers are of the latest state-of-the-art neo design, providing both lightweight and excellent performance. The result is an outstanding 2000W RMS power handling for low power compression and high reliability.
The XMAX 415 Cabinet also features an extended tuned port, much larger than found on other cabinets. This provides better linearity for higher output and lower frequencies. Combine all this with a low cabinet tuning, and deep, tight, high output bass is achieved.
2000W RMS (4000W peak) amplifier, with four 15-inch state-of-the-art neo design drivers.
Description
Connecting the XMAX 415 to any system is easy. It accepts a stereo or mono line-level signal with dual female XLR input jacks. Male XLR thru jacks are also provided for daisy chaining the signal to additional XMAX 415 cabinets in a larger system. The built-in Linquitz-Riley 24dB per octave crossover feeds the high-pass output XLR jacks, which can be used to feed the inputs of a full-range top box.
Standard with the system is a dual channel, 2000W RMS (4000W peak) amplifier that is specifically designed for use with the internal speakers. This amplifier features ISP’s patented DAA™ high-current amplification technology. The amplifier in the XMAX 415 is designed to avoid operating beyond the subwoofers capability. Dual cooling fans automatically switch on when needed.
The dimensions allow for enhanced truck pack with 94-inch (7’8″) internal truck widths. In the available Touring Version, handles and rear casters are integrated into the cabinet design for easy moving and setup.
Made with Baltic Birch
XMAX 415™
XMAX 115™
1000 watts RMS active, 2000 watts peak
15 inch sub woofer.
Internal stereo 4th order crossover.
Made with Baltic Birch
XMAX 115™
XMAX 118™
ISP Technologies introduces the XMAX™118, 1000-watt (2000-watt peak) subwoofer. The XMAX 118 offers true, deep, subwoofer performance and an extreme output level with great transient response.
Featuring a state-of-the-art, ultra long excursion 18 inch driver and a 1000 watt RMS high-current DAA™ power amplifier in an innovative box with super-linear port design, the XMAX 118 achieves ISP’s goal of musical, high resolution bass.
Unlike other companies that promote “theoretical” levels of output at the expense of flatness, deep bass and transient response, our specs are accurate.
XMAX 118™
More Products

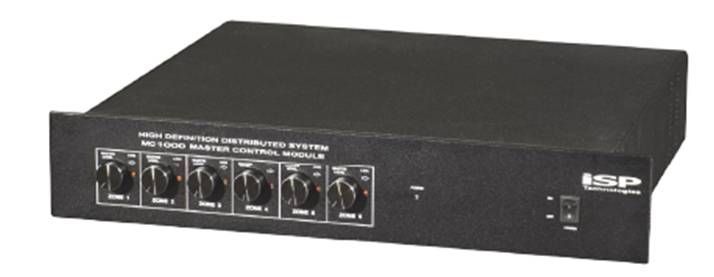

HDDS MASTER CONTROL MODULE™
The HDDS Master Control Module is the Master control center for distributed sound systems using the HDDS technology. The Master Control Module includes six zones that can be used independently or can be linked to work together allowing the system designer the flexibility to set up any system with the desired configuration.
HDDS MASTER CONTROL MODULE™
HIGH DEFINITION DISTRIBUTED SYSTEM™ BRC1™
The BRC1 offers control for small classrooms or other single zone applications. The BRC1 includes VCA control, 1/8 inch audio front panel input for iPOD or computer audio connection, externally controlled pull to ground Mute and external remote level control.
Ships with UL listed external power adaptor capable of up to 40 watts total speaker output power. Optional higher power AC adaptor is available for higher wattage speaker power. The BRC1 makes single zone installations easy and offers exceptional performance in a small package.
HIGH DEFINITION DISTRIBUTED SYSTEM™ BRC1™

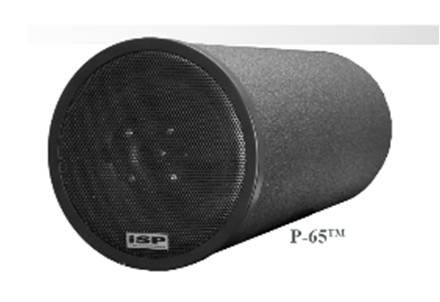

P-65 PENDANT SPEAKER™
ISP Technologies High Definition Distributed Sound HDDS P-65 pendant speaker sets a new standard in high fidelity, high output pendant style speakers. With a 6.5 inch woofer and a 1 inch high quality silk dome tweeter in a coax design the P-65 delivers true HI-FI full range response from 55Hz to 20 KHz. the P-65 is a self powered 150 watt, bi-amplified two-way pendant speaker capable of peak output levels of 116 db. The P-65 is ideal for any open-ceiling application such as restaurants, retail, hotels, casinos, conference rooms, museums and airports.
P-65 PENDANT SPEAKER™
HDDS SM800™
The HDDS SM800 is a wall mountable speaker providing full, high fidelity sound that ISP has become so well known for. The SM800 works excellently for foreground and background music plus music-plus-paging systems. These speakers are ideally suited for a wide variety of applications, from restaurants and specialty retail stores to professional offices and airports. Low frequency output can be augmented with the addition of our HDDS subwoofer, the SB112. Installation of the SM800 is quick and easy, only requiring a single Cat6 cable to be run from the Master Control Module. The loudspeaker is packaged with a bracket for easy wall mounting.
HDDS SM800™

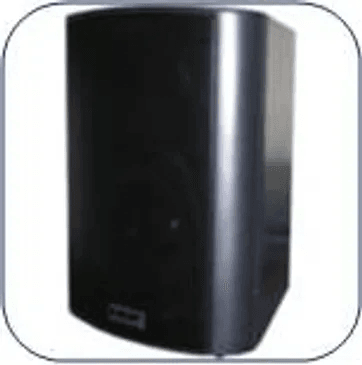

HDDS SM652™
6-1/2″ Self Powered Wall Mount speaker
30watt power amplifier
55Hz – 20kHz, RJ45 connectors
Available in Black and White.
HDDS SM652™

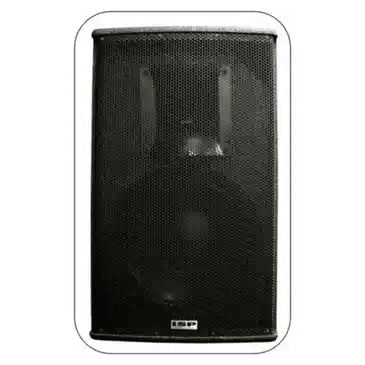

HDDS SM2110™ CABINET
The SM2110 is a high output bi-amplified two way speaker with 220 watts of internal power. The SM 2110 is designed for applications where high performance, high SPL and high fidelity is required, pushing the level of performance available in a distributed audio system.
HDDS SM2110™ CABINET
VM 2110™ FLOOR MONITOR CABINET
The ISP Technologies VM 2110 FLOOR MONITOR is a professional high output floor monitor providing extremely high fidelity sound with articulate midrange. The VM 2110 FLOOR MONITOR provides large monitor performance in a small compact footprint. The VM 2110 Floor Monitor is ideally suited for a wide variety of applications including church stages, nightclubs, and portable corporate events requiring a low profile small compact high output monitor. Many church applications prefer a low profile monitor to help keep the stage clean and the VM 2110 Floor Monitor is an excellent choice due to the high output, high definition and excellent clarity in the midrange. The VM 2110 Floor Monitor has excellent vocal clarity and dynamic impact, and will easily cut through the live stage mix.
VM 2110™ FLOOR MONITOR CABINET

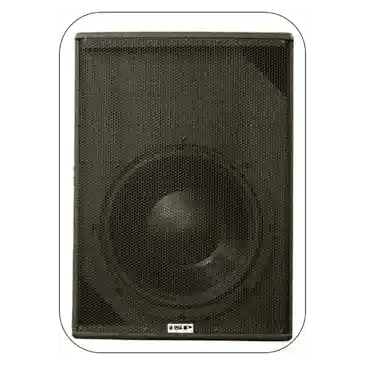

HDDS SB 112™ CABINET
Powered Surface Mount Speaker with internal 220 watt DAA Power Amplifier system includes internal Precision Equalization
Rear panel include Dual RJ45 Connectors, Remote level input control, High Pass filter selector switch
10″ woofer with rubber surround, 1.3″ titanium diaphragm compression driver
Frequency Response: (+-3 dB): 50 Hz – 19 kHz
Frequency Range: (-10 dB): 42 Hz – 20 kHz
Includes swivel type speaker bracket
12″ Self Powered Surface mount subwoofer
220 watts maximum power
Frequency Range (-10 dB): 42 Hz– 20 kHz, RJ45 connectors
HDDS SB 112™ CABINET
CSB 112™ CABINET
The CSB112, 220 watt powered subwoofer can be added with any of the HDDS Surface Mount speakers to add that extended bass response pushing system performance to a totally new level. The CSB112 has deeper bass response and higher SPL capabilities than typically found in a distributed system subwoofers.
CSB 112™ CABINET

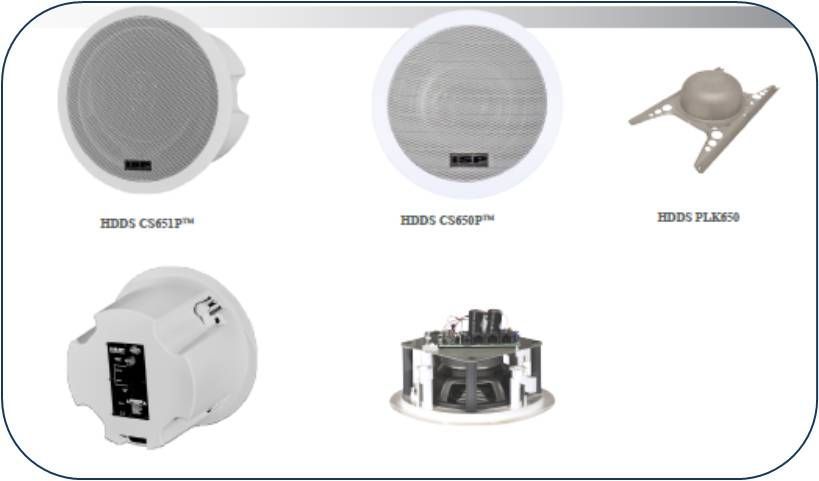

HDDS CS650P™/HDDS CS651™
- High fidelity
- No internal transformers
- Each HDDS speaker is active with internal
DAA™ amplification
- System includes internal Precision Equalization
- Power and audio over CAT5/CAT6
- Easy to install
- Installer selectable LOUDNESS switch
- RJ45 connections for Input from the Master Control Module, Output
- Connection to next speaker, remote level control
- Retrofit design allows easy installation in both new and existing construction
- UL94 high temperature rating enclose
HDDS CS650P™/HDDS CS651™
REMOTE LEVEL CONTROLS™
HDDS RM10™
HDDS Remote level control/single pot control board with control plate. Controls entire zone.
HDDS RM20™
HDDS Remote level control/dual gang pot control board with control plate. Controls 1-2 speakers.
HDDS RM201™
HDDS Remote level control/dual gang pot control board with control plate with
I POD® input jack. Control 1-2 speakers.
HDDS RM221™
HDDS Remote level control/dual gang pot control board with control plate and
I POD® input jack. Control 1-10 speakers.
REMOTE LEVEL CONTROLS™
Vocal Intelligibility Processor™
ISP Technologies patented VIP™ (Vocal Intelligibility Processor™) was developed to enhance vocal clarity for sound systems in difficult listening environments like night clubs, restaurants, and any other venue where enhanced intelligibility is desirable.
As an example, most sports bars have distributed audio systems throughout the venue and also typically suffer from less than ideal acoustics. Add to this a sporting event with a full house of patrons eating and talking and it becomes nearly impossible to understand the sports announcer on the broadcast event being shown.
Apply the VIP to the audio input signal between the broadcast output signal and the audio input of the sound system and the VIP will add dynamic articulation enhancement to greatly increase the viewing and listening experience. The VIP analyzes the Formant information in the audio signal and dynamically enhances the signal, adding greatly improved speech clarity and intelligibility. The VIP also includes an on board DE-ESSER to further improve the audio signal. For example, a basketball game can become a squeaky shoe overload after just a few minutes of listening; the VIP DE-ESSER will reduce this, and overly sibilant announcers, to a much more enjoyable listening experience. By enhancing the audio based on the dominant formants in speech the VIP will add a perceived 6 to 8 db improvement in voice intelligibility.
Description
The VIP is designed with two independent audio channels and can be either automatically switched based on the selected audio or can be remotely switched.
The VIP was designed to enhance the front end of an ISP Technologies HDDS High Definition Distributed Sound System adding even better vocal clarity and intelligibility to an already stunning distributed audio delivery system. The VIP is covered under US patent number 7,532,730, other patents pending.
Vocal Intelligibility Processor™
Vocal Intelligibility Processor™
The Audio Transient Suppressor is designed to eliminate the potential damaging turn on and turn off transient pop that you get when turning on and off your mixer.
Most audio engineers know to turn on your mixer first and then power up the power amplifiers in the system and to reverse the order when powering down the system. The problem is that many times systems are damaged by the large turn on and turn off transients due to an untrained operator, power failures, accidental removal of the power (someone tripping on the power cord) or any number of other reasons. The end result can be blown speakers and or power amplifiers.
The stress on power amplifiers and speakers that result from a full level turn on and turn off transient can result in damage since the amplifier is typically required to deliver an instantaneous series of spikes that exceed the supply rails of the amplifier. The ISP Technologies Audio Transient Suppressor is designed to eliminate this potential failure.
Rack mount Audio Transient Suppressor designed to eliminate damage to amplifiers because of spikes that exceed the supply rails when systems are turned on and off.
Vocal Intelligibility Processor™
HDA SERIES REMOTE AMPLIFIER™
All ISP Technologies self powered cabinets and Line Array Systems are available with external remote amplifiers.
Available for all subwoofers, top boxes, and all Line Array Systems.
HDA SERIES REMOTE AMPLIFIER™
